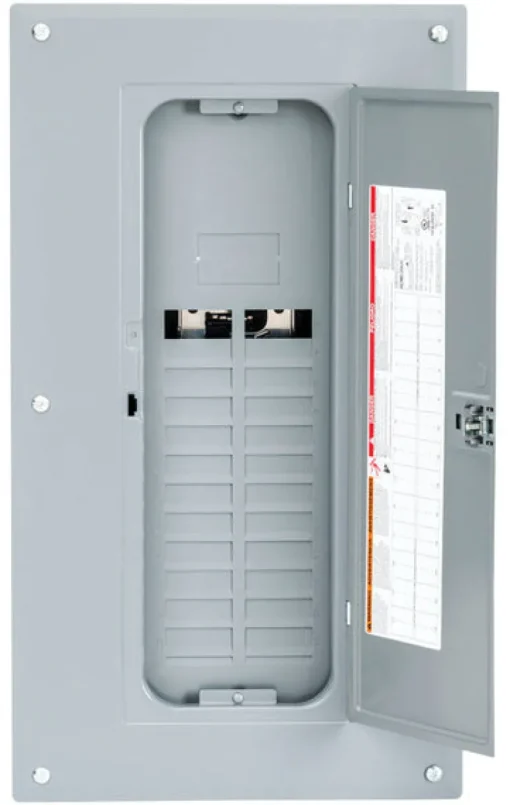

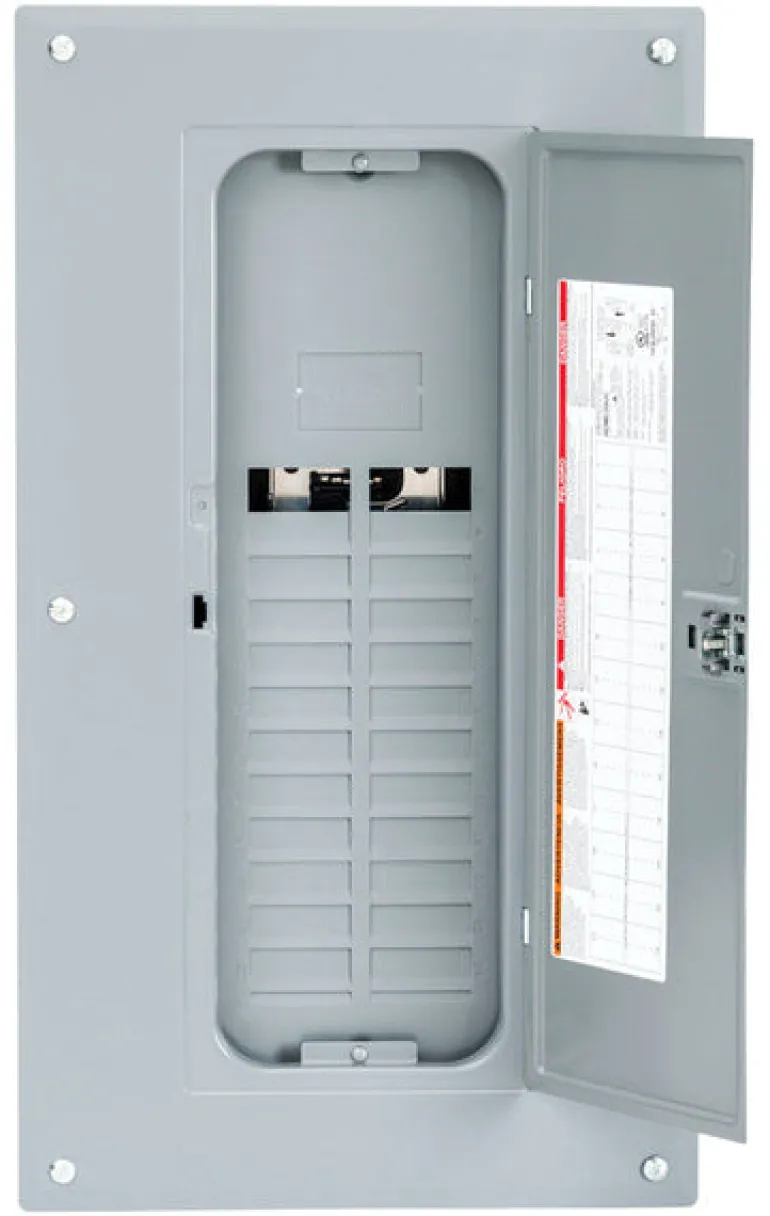

Square D HomeLine 125 amps 120/240 V 20 space 40 circuits Main Lug Load Center
$68.53
Categories: Circuit Breakers, Breaker Box And Fuses, Lighting & Electrical, Shop All Tag: Square D Brand: Square D
The Square D Homeline 125 Amp 20-Space 40-Circuit Indoor Convertible Main Lugs Load Center with cover for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar th
California residents see
- Prop 65 WARNINGSProp 65 WARNINGS This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
Brand Name
Square D
Sub Brand
HomeLine
Amps
125 amps
Number of Spaces
20 space
Maximum Number of Circuits
40 circuits
Product Type
Main Lug Load Center
Height
26 in.
Depth
3.8 in.
Packaging Type
Boxed
Breakers Included
No
UL Listed
Yes
Circuit Protection Type
Single Pole
Indoor or Outdoor
Indoor
Width
14.2 in.
Volts
120/240 V
Weight (lb)
23.3
Length (in.)
28.7
Width (in.)
16
Height (in.)
5.75
