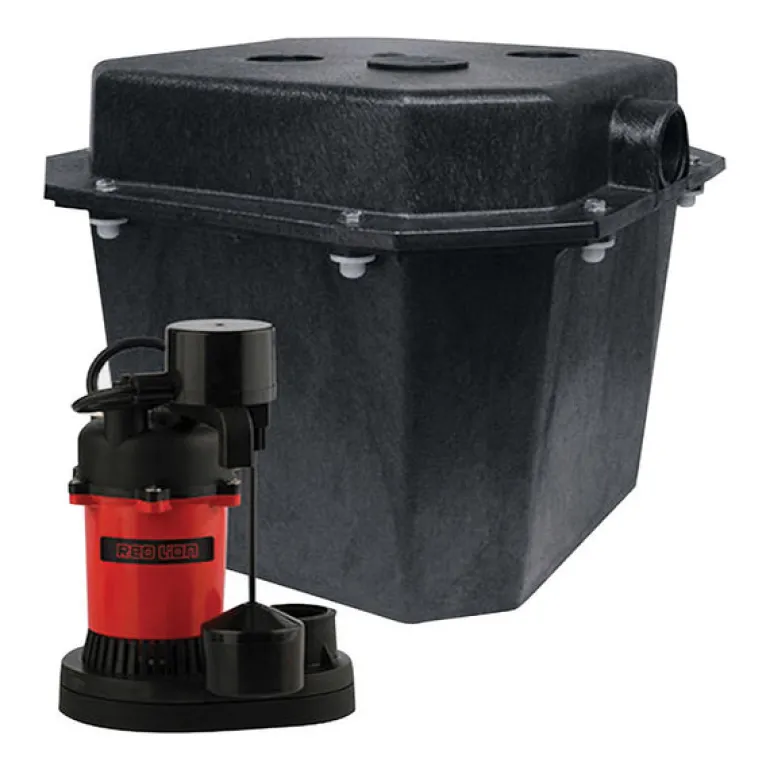

This under-sink basin system is perfect for pumping washing machine, wet bar and air conditioning drainage without an in-ground basin. Ideal for water removal from impractical gravity drainage areas and residential spaces such as under sinks and laundry trays. The 1-1/2 in. threaded fittings for inlet, discharge and vent allow for easy installation and service. Up to 3200 gph at 0 ft. of lift, 2520 gph at 10 ft. of lift. Less than 13.5 inches high to fit in tight spaces.
California residents see
- Prop 65 WARNINGSProp 65 WARNINGS WARNING: This product can expose you to chemicals including Carbon Black which is known to the State of California to cause cancer. For more information go to www.P65warnings.Ca.Gov.
Brand Name
Red Lion
Maximum Discharge Flow
3200 gph
Housing Material
Thermoplastic
Sump Pump Outlet Diameter
1-1/2 in.
Pump Switch Type
Vertical Float Switch
Product Type
Sump Pump
Width
15 in.
Amps
4.4 amps
Depth
15 in.
Powered By
AC
Horsepower
1/3 HP
Volts
115 V
Maximum Temperature
104 °F
Height
13.5 in.
Maximum Feet of Head
24 ft.
Vent
1-1/2 in. FNPT
Discharge
1-1/2 in. FNPT
Weight (lb)
19.3
Length (in.)
15.5
Width (in.)
15.5
Height (in.)
14.5
