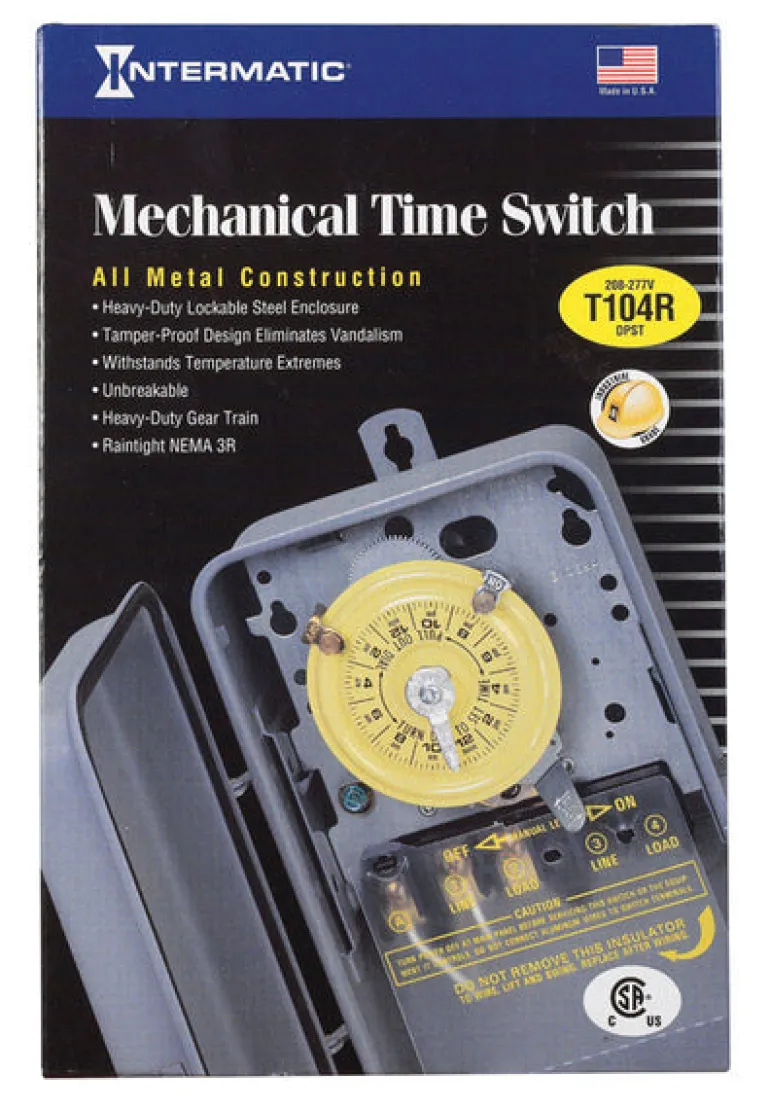

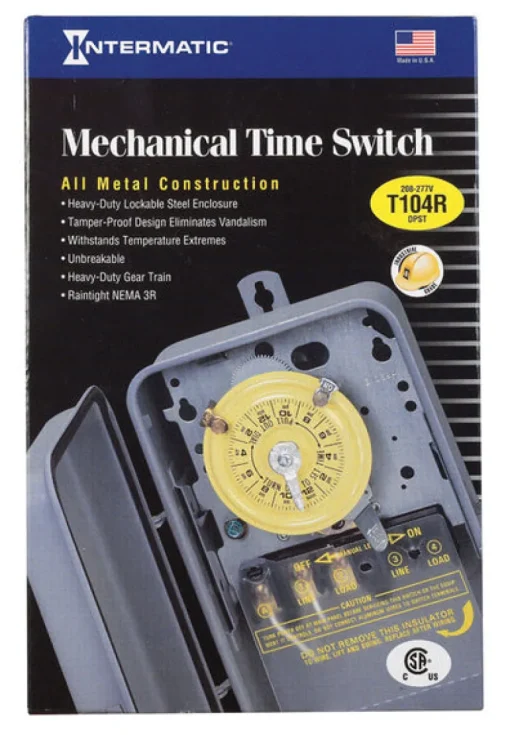

Intermatic Indoor and Outdoor Mechanical Timer Switch 277 V Gray
$79.20
Categories: Circuit Breakers, Breaker Box And Fuses, Lighting & Electrical, Outdoor & Living, Outdoor Lighting, Shop All Tag: Intermatic Brand: Intermatic
The T100 series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 amp per pole and allow for up to 12 On/Off operations per day. A manual override switch provides added convenience.
California residents see
- Prop 65 WARNINGSProp 65 WARNINGS WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Brand Name
Intermatic
Indoor or Outdoor
Indoor and Outdoor
Product Type
Mechanical Timer Switch
Color
Gray
Number in Package
1 pk
Programmable
Yes
UL Listed
Yes
Packaging Type
Boxed
CSA Listed
Yes
Watts
3 W
Volts
277 V
Application
Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads
Cycles
24 hr
Warranty
1 year
Electronic Ballast
16 A
Depth
3 5/8 in.
Enclosure Type
Indoor/outdoor Type 3R Metal
Height
10 1/8 in.
Inductive Range
40 A, 120-277 VAC, 60 Hz
Inductive
40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Input Voltage Range
208-277 VAC, 60 Hz
Knockout Dimensions Bottom
(2) combination 1/2 in. – 3/4 in.
Knockout Dimensions Back/Side
(1) combination 1/2 in. – 3/4 in.
Motor
2 HP, 24 FLA at 120 VAC, 60 Hz;5 HP, 28 FLA at 240 VAC, 60 Hz
Minimum On/Off Times
1 hour
Maximum On/Off Operations
12
Number of Circuits
1
Operation Temperature
-40 degree F to 130 degree F
Pilot Duty Range
1000 VA, 120-277 VAC, 60 Hz
Resistive Range
40 A, 120-480 VAC, 60 Hz
Tungsten Range
40 A, 120-277 VAC, 60 Hz
Switch Type
DPST
Wire Size Maximum
No.8 AWG
Width
6 1/2 in.
Wire Size Minimum
No.14 AWG
Wiring Option
Terminal
Weight (lb)
3.58
Length (in.)
3.8
Width (in.)
6.7
Height (in.)
10.3
