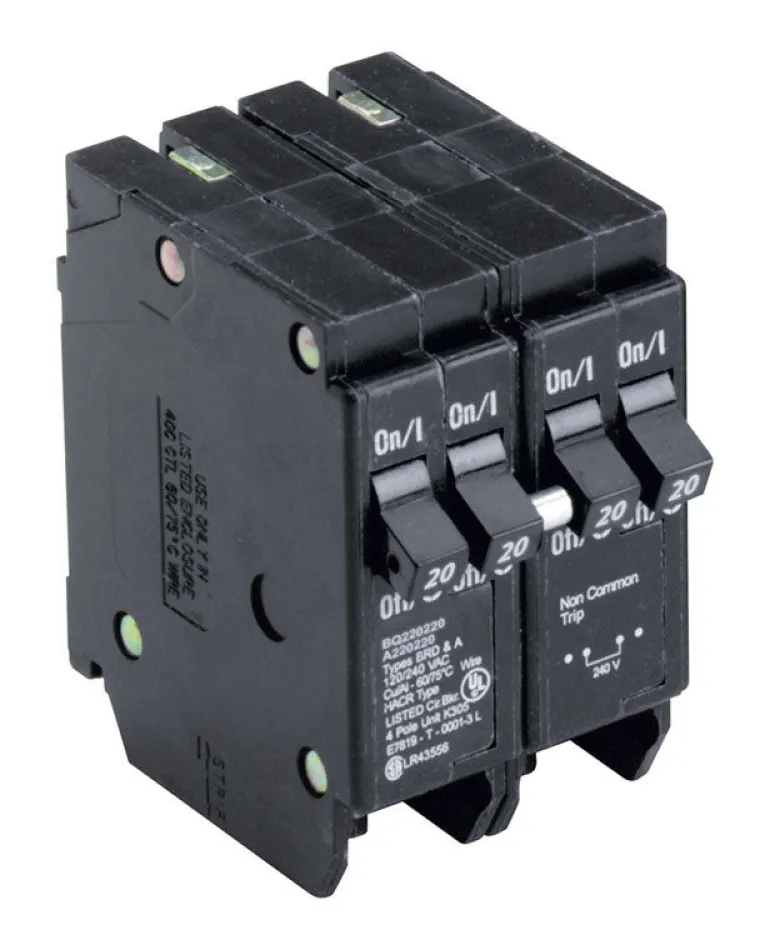

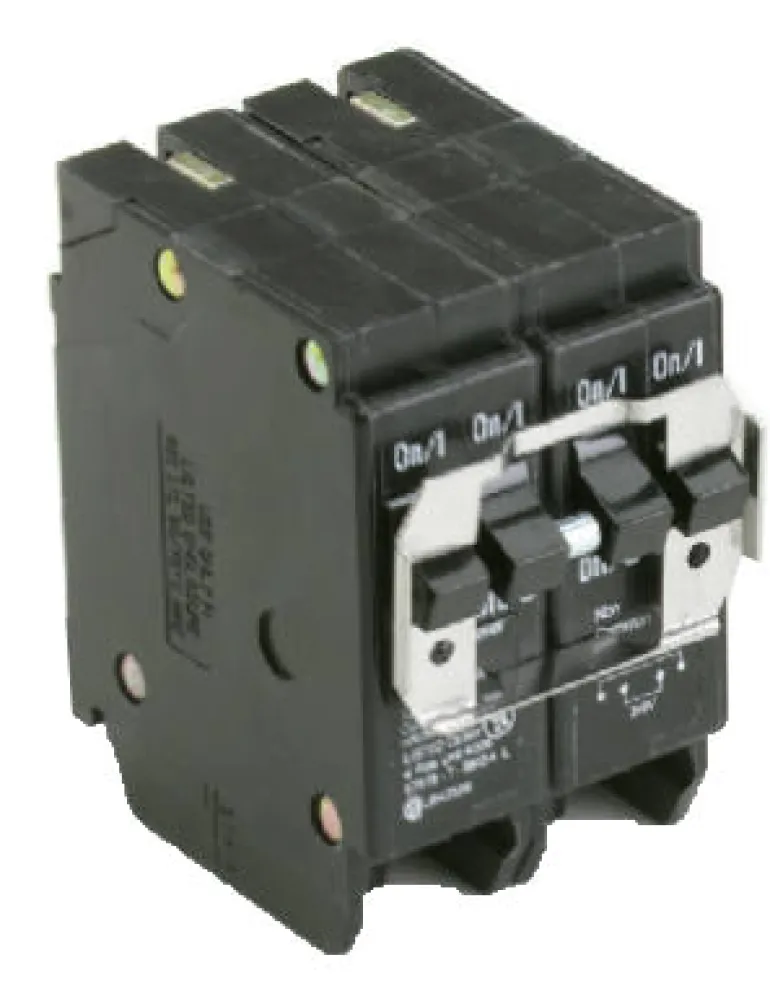

Eaton Cutler-Hammer 4-Pole 20/20 A Plug in Circuit Breaker
$38.70
Categories: Circuit Breakers, Breaker Box And Fuses, Lighting & Electrical, Shop All Tag: Eaton
Eaton Cutler-Hammer four-pole Circuit Breakers are designed to protect your home’s wiring and safeguard your family. The Eaton Cutler-Hammer quadplex or quad-type circuit breakers are designed to create four circuits in two spaces. These Eaton circuit breakers have an independent trip and a rejection tab feature which will help prevent fires and avoid trips. They are intended for use in BR-type load centers and should be installed only in panel positions that have notched bus stabs that accommodate the rejection clip. These replacement breakers are suitable for load centers made by Westinghouse, Challenger, and Bryant.
California residents see
- Prop 65 WARNINGS
Brand Name
Eaton
Sub Brand
Cutler-Hammer
Amps
20/20 amps
Circuit Protection Type
Plug In
Number of Poles
4-Pole
Product Type
Circuit Breaker
Product Series
Type BR
Indoor or Outdoor
Indoor
UL Listed
Yes
Height
3 in.
CSA Listed
Yes
Mounting Type
Plug-In
Packaging Type
Bulk
Depth
3 in.
Width
2 in.
Volts
120/240 V
Weight (lb)
0.9
Length (in.)
3
Width (in.)
2
Height (in.)
3.3
